A hydraulic breaker chisel, also known as a hydraulic breaker bit or tool, is a critical component in a hydraulic breaker system. It is the part of the hydraulic breaker that comes into direct contact with the material being broken, such as concrete, rocks, or other hard materials. The hydraulic breaker chisel is responsible for transmitting the impact force generated by the hydraulic breaker to the material, effectively breaking it apart.

Hydraulic breakers are widely used in construction, mining, quarrying, and demolition applications, where the need to break through hard materials is required. They are typically attached to excavators, backhoes, skid steers, or other hydraulic-powered machinery. The hydraulic breaker chisel is a replaceable wear part that is subjected to extreme forces and wear during operation. Therefore, it is crucial to understand the design, construction, types, and maintenance of hydraulic breaker chisels to ensure efficient and safe operation.

Design and Construction: Hydraulic breaker chisels are typically made from high-quality materials, such as hardened steel or alloy steel, to withstand the extreme forces and wear during operation. They are designed with specific shapes and configurations to suit different applications and materials. For example, chisels used for breaking concrete may have a flat or pointed tip, while chisels used for breaking rocks may have a chisel or moil point shape. The chisel may also have flutes or grooves to enhance the cutting action and material removal during operation.

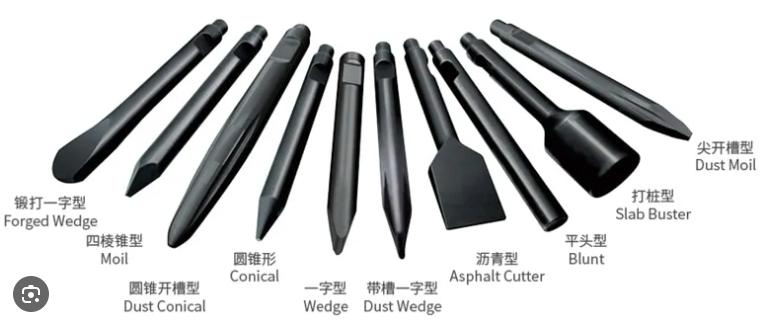

Types of Hydraulic Breaker Chisels: There are several types of hydraulic breaker chisels available, each with its unique design and application. Some common types of hydraulic breaker chisels include:

Moil Point: This type of chisel has a pointed tip and is suitable for breaking rocks, hard materials, and concrete.

Flat Chisel: This type of chisel has a flat tip and is suitable for breaking concrete, asphalt, and other hard materials.

Blunt Chisel: This type of chisel has a blunt tip and is suitable for breaking rocks, frozen ground, and other tough materials.

Pyramid Chisel: This type of chisel has a pyramid-shaped tip with multiple cutting edges, which provides efficient material removal and is suitable for breaking hard rocks and concrete.

Tamping Pad: This type of chisel has a flat or slightly concave tip and is suitable for compacting soil, backfilling trenches, and other compaction applications.

Frost Wedge: This type of chisel has a sharp edge and a narrow profile, making it suitable for breaking frozen ground, hard soil, and other tough materials.

Asphalt Cutter: This type of chisel has a wide, flat tip with serrated edges and is designed specifically for cutting through asphalt and other road surfaces.
